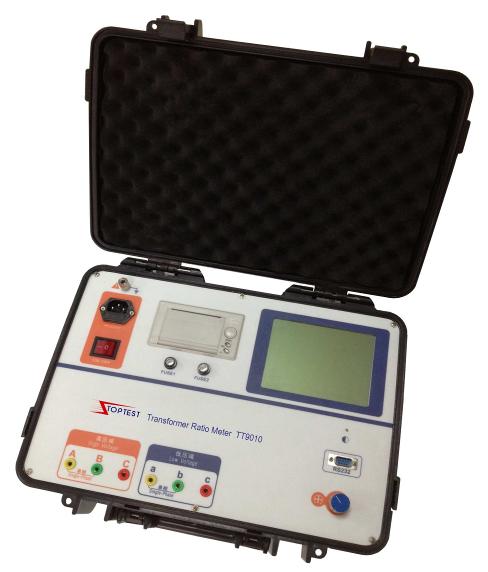

TM-GDB-II Transformer Turns Ratio Meter |
Transformer Ratio |
This Transformer Turns Ratio Meter is ideal for Testing Single and 3 Phase Transformer Ratios, fully automatic, with no manual balancing. Auto calibrating, Calculates the ratio error and saves the test date automatically. Has Built-in Printer for last 30 records. |
|
Datasheet (80KB) |
|
TM-GDB-II Transformer Turns Ratio Meter |
|
T + M ® |
|
Excess Stock to be cleared while stocks last. > Click for More... |
|
Test our Service and Measure with our Instruments. |
|
Applications
Auto Transformers, Power Transformers and Distribution Transformers. Turn Ratio testing of Current Transformers. Verification of connection methods (Dy-Dd-Yy-Yd) of windings of the Transformers. Verification & Checking of on load Tap Changers. |
|
Key Features of Transformer Turns Ratio Meter
· Fully automatic testing, no manual balancing. · Large LCD screen display menu and results. · Test single phase and three phase transformers. · Measure transformer connection groups automatically. · Switch measuring range automatically. · Calibrate automatically. · Calculate ratio error automatically. · Save the test data automatically. · Built-in printer, recall and print last 30 records. · Truly portable, easy to carry. · Automatically cut off power after testing. · Fuse protection for test leads short circuit. · Fuse protection and Reset protection for reverse connection of HV side and LV side. |
|
