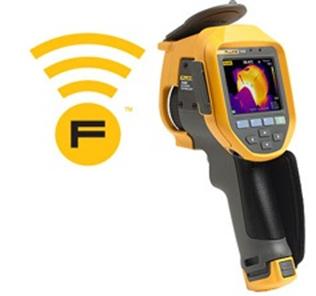

FLUKE Ti400 Thermal Imaging Camera. |
Ti400 Thermal Imager |
|
Powerful High-Performance features make troubleshooting fast and easy. A new generation of auto focus ensures in-focus images every single time, and captures up to 5 additional measurements wirelessly. |
|
Datasheet (1.29MB) |
|
Features · Detect and communicate issues faster with patented Fluke IR-Fusion® technology with AutoBlend™ mode · Faster communication with wireless image transfer directly to your PC, Apple® iPhone® or iPad® · Capture up to 5 additional measurements with the CNX™ Wireless System* · One-handed, easy-to-use user interface · Ruggedized high resolution 640x480 capacitive touch screen for quick menu navigation · Capture additional digital images to show location or additional site details with IR-PhotoNotes™ Annotation System · More advanced display output options to get the details via streaming video to PC or high definition monitor (USB and HDMI) · Voice recording and annotation gets additional details saved with the image file · Optional interchangeable lenses for greater flexibility in additional applications · Rechargeable, field replaceable smart batteries with LED display to show charge levels for excellent field flexibility · High-temperature measurement up to 1200 °C · 5 MP industrial-performance digital camera for high definition image quality · Included SmartView® and SmartView Mobile App Analysis and Reporting Software. |
|
Specifications |
|
T + M ® |
|
Excess Stock to be cleared while stocks last. > Click for More... |
|
Test our Service and Measure with our Instruments. |
|
We would be very pleased to see you at our offices and show room at the address given above. Please use the maps supplied on our Contact Us page, or call us for directions, should you not be using our GPS Co-Ordinates supplied. It will be our pleasure to assist with your unique requirements. We trust that your visit will be an enjoyable one. T+M® For Good Measure. |
|
Please Note: This is not our complete range, so please contact us for further information on any product that you require, which is not seen on our site. You can call us on +27 (011) 683 4365 or email us by clicking here. |
|
Copyright © 2009—2025 Test and Measurement Instruments C.C. | All rights reserved FLUKE Ti400 Thermal Imager |
|
T + M ® |
|
How to Set User Selected Markers on Your Fluke Ti400, Ti300 and Ti200 Infrared Cameras |
|
Brand Names |
|
All brands, trade names, trade marks, and logos are the property of their respective owners. |
|
Ph: +27 (011) 683 4365 / 6 E-mail: sales@instrumentsgroup.co.za
Physical Address: 3 Angelica Ave, Glenvista, Johannesburg, 2091 SOUTH AFRICA
Postal Address: As Above. |
|
This Month’s Special |
|
Click Ex-Series for Spec. Also: Thermal Imagers |
|
Detailed Specifications |
|
|
Temperature |
|
|
Temperature measurement range (not calibrated below -10 °C) |
-20 °C to +1200 °C |
|
(-4 °F to +2192 °F) |
|
|
Temperature measurement accuracy |
± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
|
On-screen emissivity correction |
Yes (by number and table) |
|
On-screen reflected background temperature compensation |
Yes |
|
On-screen transmission correction |
Yes |
|
Imaging Performance |
|
|
Image capture frequency |
9 Hz refresh rate or 60 Hz refresh rate depending upon model variation |
|
Detector type |
Focal Plane Array, uncooled microbolometer, 320 x 240 pixels |
|
Thermal sensitivity (NETD) |
≤ 0.05 °C at 30 °C target temp (50 mK) |
|
Total pixels |
76,800 |
|
Infrared spectral band |
7.5 μm to 14 μm (long wave) |
|
Visual (visible light) camera |
Industrial performance 5.0 megapixel |
|
Standard Infrared Lens Type |
|
|
Field of view |
24 ° x 17 ° |
|
Spatial resolution (IFOV) |
1.31 mRad |
|
Minimum focus distance |
15 cm (approx. 6 in) |
|
Optional Telephoto Infrared Lens Type, Available Soon |
|
|
Field of view |
12 ° x 9 ° |
|
Spatial resolution (IFOV) |
0.65 mRad |
|
Minimum focus distance |
45 cm (approx. 18 in) |
|
Optional Wide-Angle Infrared Lens Type, Available Soon |
|
|
Field of view |
46 ° x 34 ° |
|
Spatial resolution (IFOV) |
2.62 mRad |
|
Minimum focus distance |
15 cm (approx. 6 in) |
|
Focus Mechanism |
|
|
LaserSharp™ auto focus system |
Yes |
|
Advanced manual focus |
Yes |
|
Image Presentation |
|
|
Palettes |
|
|
Standard |
Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
|
Ultra Contrast™ |
Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra |
|
Level and span |
Smooth auto-scaling and manual scaling of level and span |
|
Fast auto toggle between manual and auto modes |
Yes |
|
Fast auto-rescale in manual mode |
Yes |
|
Minimum span (in manual mode) |
2.0 °C (3.6 °F) |
|
Minimum span (in auto mode) |
3.0 °C (5.4 °F) |
|
IR-Fusion® Information |
|
|
Picture-in-Picture (PIP) |
Yes |
|
Full screen infrared |
Yes |
|
AutoBlend™ mode |
Yes |
|
Color alarms (temperature alarms) |
High-temperature , low-temperature, and isotherm (user-selectable) |
|
Image Capture and Data Storage |
|
|
Image capture, review, save mechanism |
One-handed image capture, review, and save capability |
|
Storage medium |
Micro SD Memory Card, on-board flash memory, save-to-USB capability, direct download via USB-to-PC connection |
|
File formats |
Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) |
|
No analysis software required for non-radiometric (.bmp and jpg) files |
|
|
Export file formats w/SmartView® software |
BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF |
|
Memory review |
Thumbnail view navigation and review selection |
|
Other Time-Saving and Productivity Features |
|
|
Voice annotation |
60 seconds maximum recording time per image; reviewable playback on imager |
|
IR-PhotoNotes™ |
Yes |
|
Wi-Fi connectivity |
Yes, to PC, iPhone®, iPad® and WiFi to LAN* |
|
Text annotation* |
Yes |
|
Video recording* |
Standard and radiometric |
|
Streaming video |
Via USB to PC and HDMI to HDMI compatible screen |
|
CNX wireless system* |
Yes |
|
Cardinal compass* |
Yes |
|
Auto capture (temperature and interval)* |
Yes |
|
Remote control and operation (for special and advanced applications) |
Yes |
|
General Specifications |
|
|
Operating temperature |
-10 °C to +50 °C (14 °F to 122 °F) |
|
Storage temperature |
-20 °C to +50 °C (-4 °F to 122 °F) without batteries |
|
Relative humidity |
10 % to 95 % non-condensing |
|
Ruggedized touchscreen display (capacitive) |
8.9 cm (3.5 in) diagonal landscape color VGA (640 x 480) LCD with backlight |
|
Controls and adjustments |
User selectable temperature scale (°C/°F) |
|
Language selection |
|
|
Time/Date set |
|
|
Emissivity selection |
|
|
Reflected background temperature compensation |
|
|
Transmission correction |
|
|
User selectable hot spot and cold spot, and center point on the image |
|
|
Expandable-contractable Measurement Box with MIN-AVG-MAX temp |
|
|
Color alarms |
|
|
User selectable backlight setting graphical information display preference |
|
|
Graphical information display preference |
|
|
Software |
SmartView® and SmartView Mobile App - full analysis and reporting software included |
|
Batteries |
Two lithium ion rechargeable smart battery packs with five-segment LED display to show charge level, all models |
|
Battery life |
Four+ hours continuous use per battery pack (assumes 50 % brightness of LCD and average usage) |
|
Battery charge time |
2.5 hours to full charge |
|
AC battery charging |
Two-bay ac battery charger (110 V ac to 220 V ac, 50/60 Hz) (included), or in-imager charging. AC mains adapters included. Optional 12 V automotive charging adapter. All models |
|
AC operation |
AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz). AC mains adapters included. |
|
Power saving |
User selectable sleep and power off modes |
|
Safety standards |
UL 61010-1:2012 CAN/CSA-C22.2 No.61010-1-12 IEC 61010-1 3rd Edition (2010) |
|
Electromagnetic compatibility |
EN 61326-1:2006 IEC 61326-1:2005 |
|
C Tick |
IEC/EN 61326-1 |
|
US FCC |
CFR 47, Part 15 Subpart B Class B |
|
Vibration |
0.03 g2/Hz (3.8 grms), 2.5g IEC 68-2-6 |
|
Shock |
25 g, IEC 68-2-29 |
|
Drop |
Engineered to withstand 2 meter (6.5 feet) with standard lens |
|
Size (H x W x L) |
27.7 cm x 12.2 cm x 16.7 cm (10.9 in x 4.8 in x 6.5 in) |
|
Weight (battery included) |
1.04 Kg (2.3 lb) |
|
Enclosure rating |
IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
|
Warranty |
Two-years (standard), extended warranties are available. |
|
Recommended calibration cycle |
Two-years (assumes normal operation and normal aging) |
|
Supported languages |
Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
